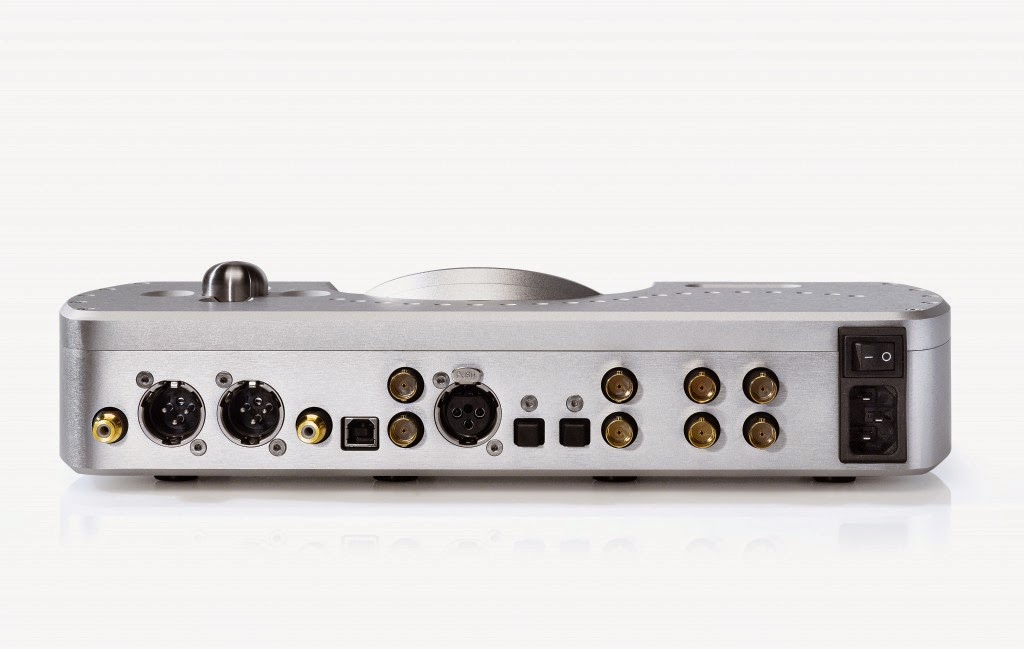

Inputs:
USB B-style 44 kHz to 768 kHz
DXD and Quad DSD
2x optical 44kHz to 192kHz
1 x AES 44kHz to 192kHz
4 x Coax 44kHz to 384kHz
Dual-data mode available
Outputs digital:
2x ultra-high-speed coax 768kHz dual-data mode (for use with future-unannounced Chord Electronics products)
Maximum output voltage: 6 volts RMS
THD and noise at 2.5 volts: RMS 0.000015 %
THD and noise at 2.5 volts: 127dBA Awt (124dBA into 33 ohms)
Dynamic range at -60 dBFS 1kHz -127 dBA A wt
(No measurable noise floor modulation, no a harmonic distortion)
(Analogue distortion characteristic: no distortion for small signals)
Power requirements: mains power 80 volts to 260 volts; AC 20 watts
Available for delivery this autumn and pre order soon, you will be able to have DAVE at home for just £7995
