Number of channels:
2 (stereo mode), 1 (monoblock mode)
Topology:
fully discrete, highly optimized dual differential, high current, short signal path Class A/B with premium components throughout
Power output (all channels driven):
1000 watts RMS @ 8 ohm (Mono-Block mode)
500 watts RMS per channel @ 4 ohm (0.12% THD)
300 watts RMS per channel @ 8 ohm (0.07% THD)
Rated power bandwidth:
20 Hz to 20 kHz +/- 0.07dB
Broadband frequency response:
5Hz to 100kHz, +0 -3dB
Amplifier gain: 29 dB
Signal to Noise Ratio: 1 watt: > 97 dB
Full power: > 121 dB
Input impedance: unbalanced: 23.5kohms
balanced: 33 kohms

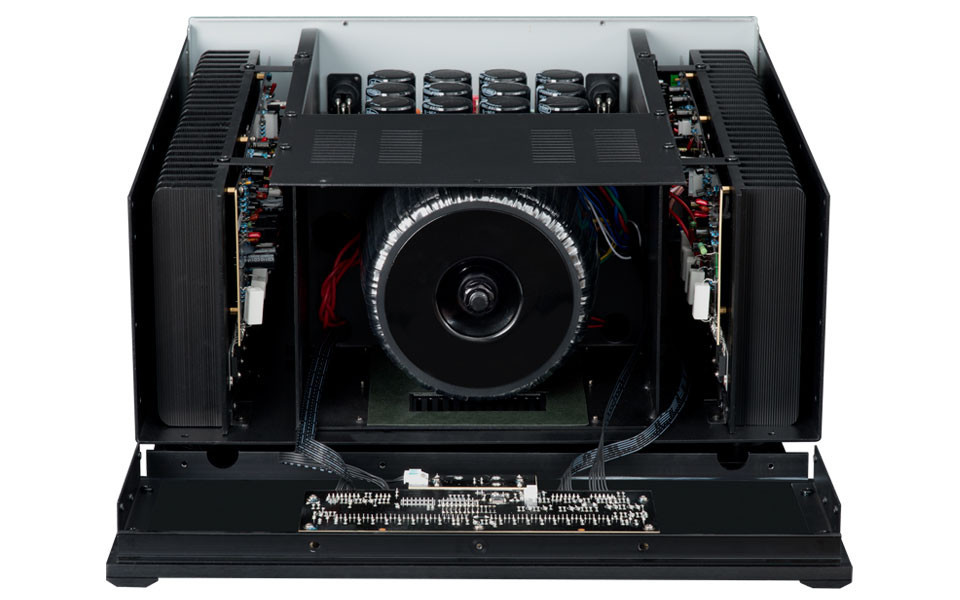

Power supply: 1,200VA toroidal transformer with 45,000uF low ESR storage capacitance
Size:
unboxed: 17” wide x 7 3/4” high x 19” deep
boxed: 23 1/2″ wide x 12″ high x 24 3/4″ deep
Weight: 72.6 lbs (83.5 lbs boxed)
