Wilson Benesch A.C.T. One Evolution is a full range, 4-‐way acoustical, 2.5-‐way electrical, floor standing loudspeaker that incorporates the latest drive unit and cabinet construction technology derived from the company’s Cardinal loudspeaker.
A.C.T. One Evolution uses a combination of precision machined alloy baffle, alloy side panels and the Advanced Composite Technolog – A.C.T. which is a geometrically optimised carbon fibre composite structure that exhibits industry leading resonance damping and s/n characteristics. The inherent stiffness of the A.C.T. Monocoque allows the removal of complex internal bracing commonly used to control cabinet resonance.
Each A.C.T. One Evolution is fitted with three Wilson Benesch Tactic II drive units and a Wilson Benesch Hybrid Dome Technology Semisphere Tweeter. Every element of the drive technologies and the cabinet in the A.C.T. One Evolution has been designed and developed using Wilson Benesch’s 3D Dassault CAD/CAM systems. The degree of control over the design of every component, allows ground up optimisation of the A.C.T. One Evolution and has led to the development of unique drive unit topology and cabinet construction.
Each A.C.T. One Evolution is fitted with three Wilson Benesch Tactic II drive units and a Wilson Benesch Hybrid Dome Technology Semisphere Tweeter. Every element of the drive technologies and the cabinet in the A.C.T. One Evolution has been designed and developed using Wilson Benesch’s 3D Dassault CAD/CAM systems. The degree of control over the design of every component, allows ground up optimisation of the A.C.T. One Evolution and has led to the development of unique drive unit topology and cabinet construction.

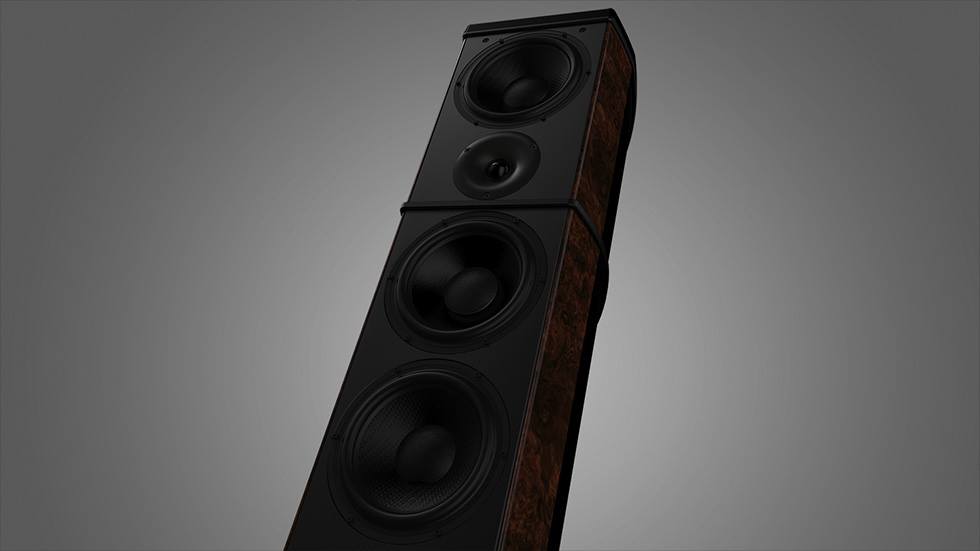

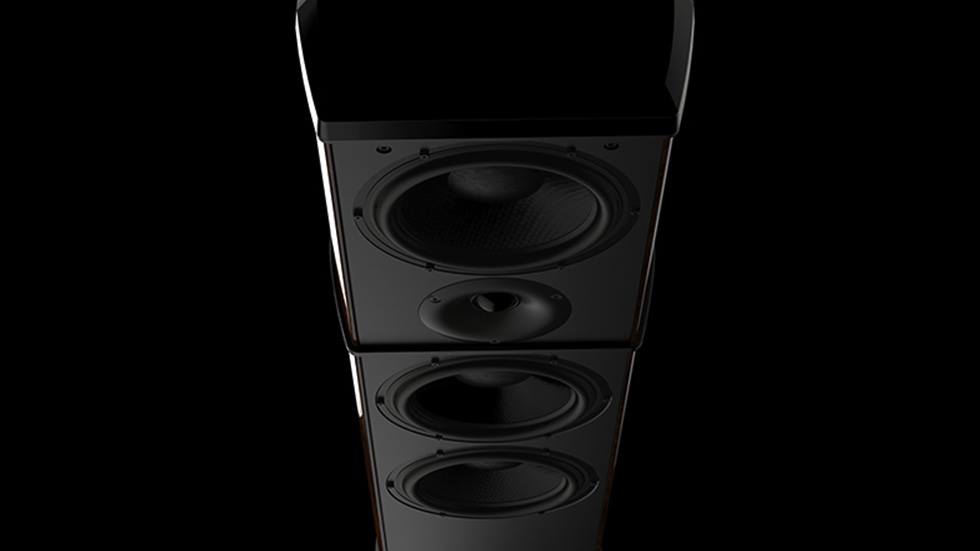

In the midrange, Wilson Benesch introduces technology taken directly from the flagship Cardinal loudspeaker. A two part cabinet construction sees a single 7” upper midrange Tactic II drive unit and Semisphere Tweeter operate in a volume-‐optimised enclosure, allowing acoustical roll off of the drive unit. Directly below the Semisphere Tweeter in the main enclosure, a 7” lower midrange Tactic II drive unit resides -‐ placing the Semisphere at the heart of the midrange design in a formation known as the Troika System. “The reduction in complex crossover elements translates directly into a highly articulate and natural midrange sound and marks a significant advance in the performance of the midrange to Wilson Benesch” says the company’s press release.
At the centre of the Troika System is the Hybrid Dome Technology Semisphere Tweeter -‐ a highly engineered solution for high frequency sound reproduction. Wilson Benesch drew upon more than two-‐decades of knowledge and expertise to create a hybrid diaphragm for the Semisphere consisting of carbon fibre and silk. The hybrid dome is a direct departure from hard dome technologies now used as standard across the industry for wide bandwidth tweeter design. “The natural sound produced by the Semisphere dovetails directly into the open sound of the midrange to create a highly integrated system, with stunning sound staging and detail” .
The A.C.T. One Evolution bass frequencies are delivered by a 7” Tactic II Bass Drive Unit. Like the midrange drive units, it features a powerful Neodymium rare earth magnet encased in a motor assembly developed with the Sheffield University to optimise flux across its geometry. This exotic magnet design is combined with a streamline basket and a light stiff Isotactic Polypropylene cone to create a powerful bass drive unit. By installing the Tactic II Bass Drive Unit inside the 26-‐litre lower enclosure of the A.C.T. One Evolution, maximum dynamics, deep powerful bass frequency response and precision are achieved.

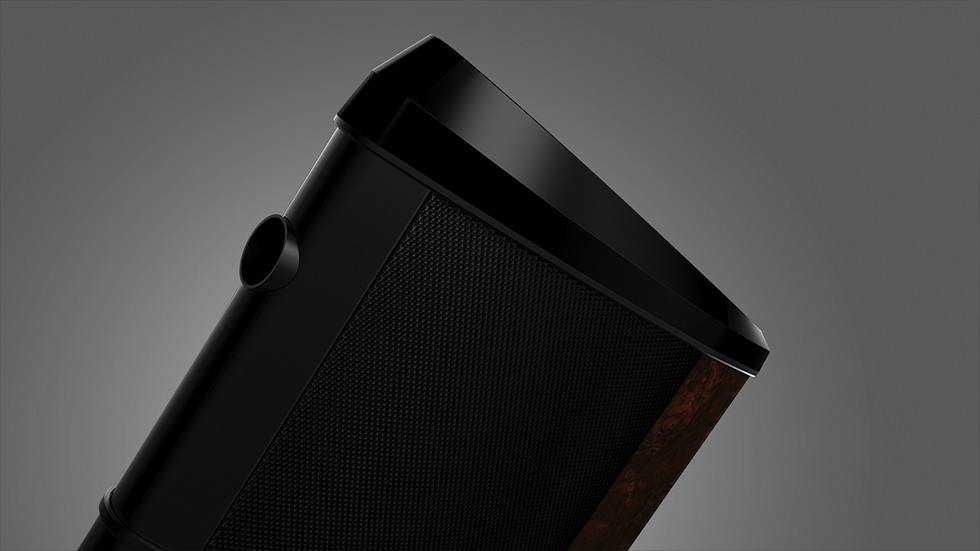

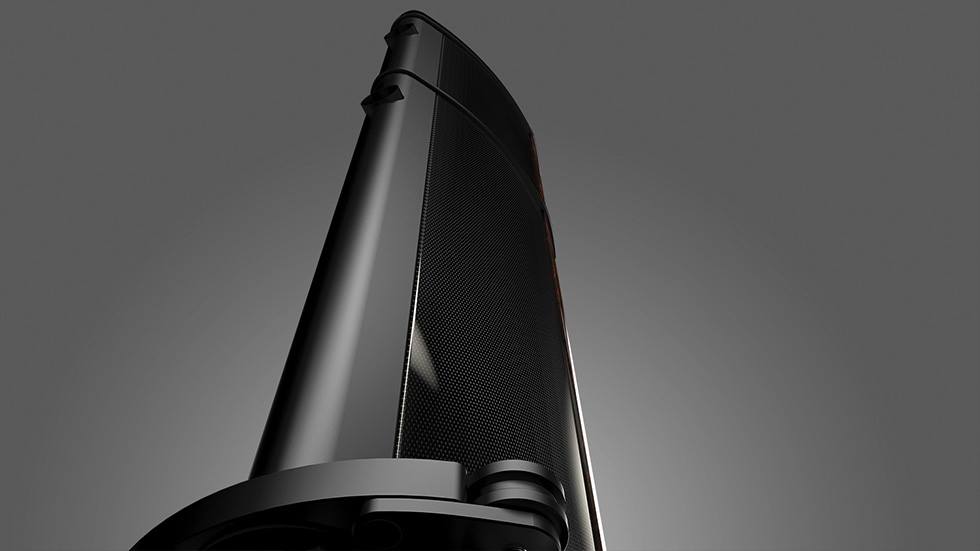

The A.C.T. One Evolution is a distinctive Wilson Benesch design drawing direct references to the company’s A.C.T. loudspeaker lineage. Its sculptured, curved and sloped top is a direct descendant of the original A.C.T.

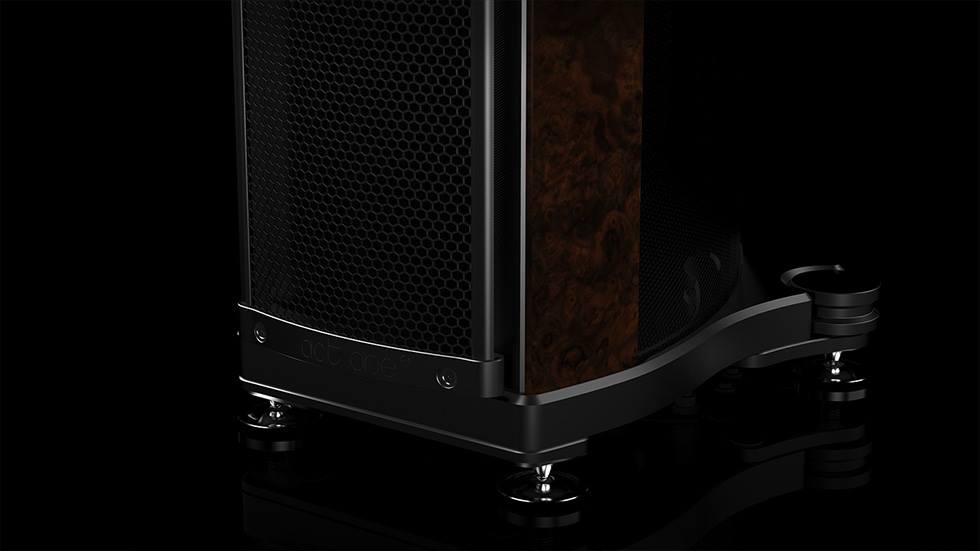

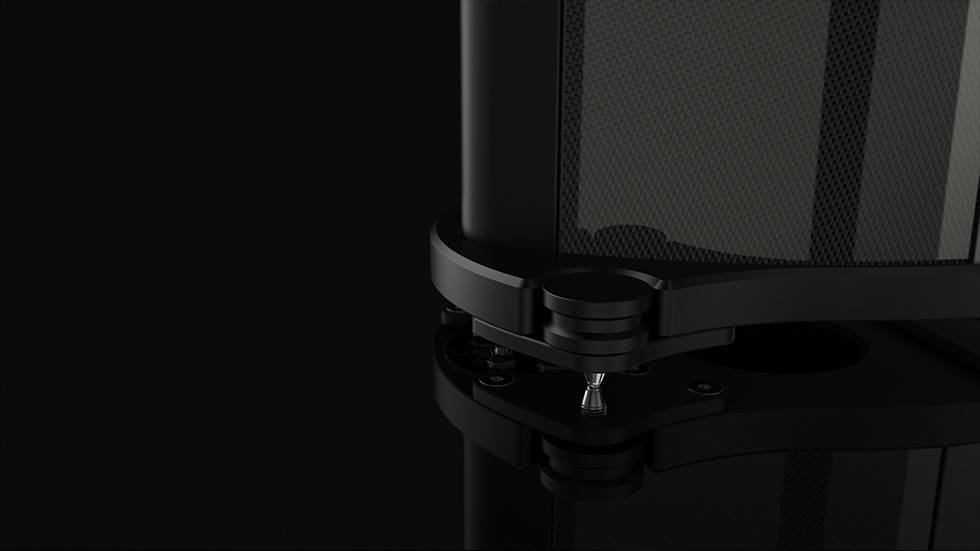

Despite references to a classic design before it, when distilled the design philosophy of the A.C.T. One Evolution is a clear descendant of other Geometry Series designs before it. Aesthetic cues can be observed in the foot design, where hand wheels and the partnering kinematic cups sit either side of the distinctive curves that form the A.C.T. One Evolution foot. Like the Cardinal and the Endeavour, the terminal is recessed underside of the foot; whilst upfront the baffle features the subtle machine finishing as seen in the Vertex and Vector loudspeakers.
Standard Finish £19,950 RRP
Wood / High Gloss Finish £21,350 RRP
Sensitivity: 89dB
Impedance: 6 Ohms Nom. / 4 Ohms. Min Frequency Response: 34Hz – 30kHz Recommended Power: 50
Dimensions: 119cm (47”) H x 22.5cm (9”) W x 40cm (16”) D Air Volume: 46 litres
Weight: 46kg (101lbs)
Shipping August 2015.
